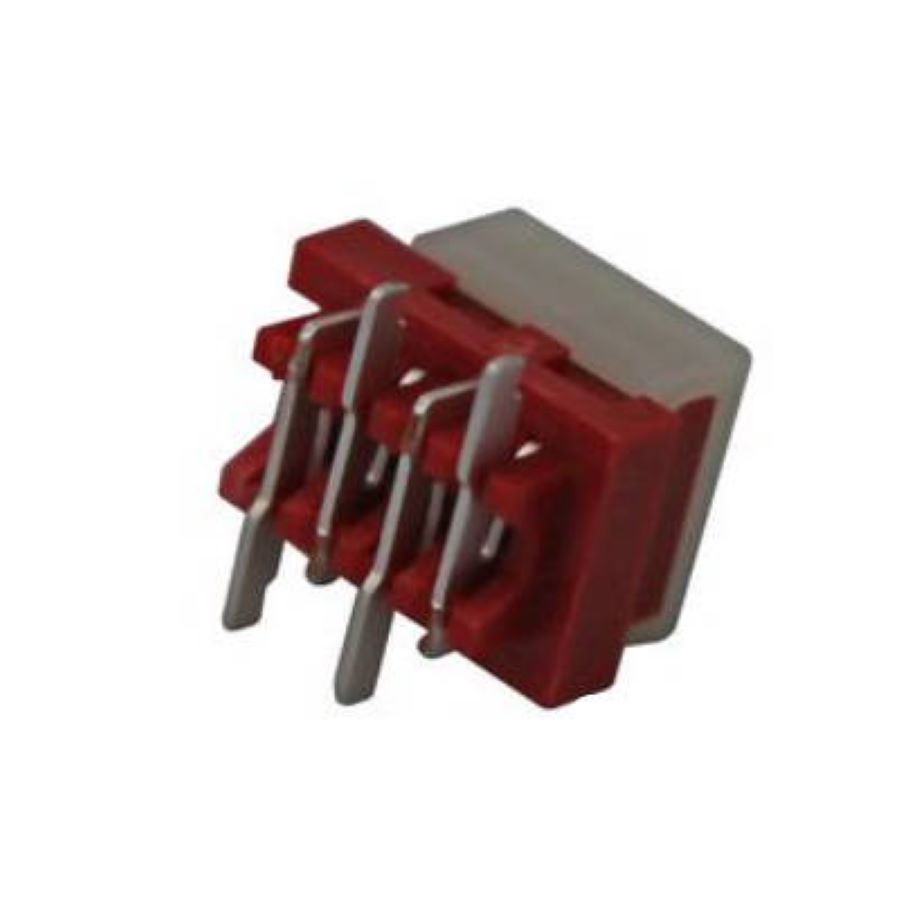

690367280476
Manufacturer:
Wurth Electronics
Mfr.Part #:
690367280476
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Socket Number of Positions:4 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 7.08 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 5.75 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 100 V |
| Color | Red |
| Gender | Female |
| Number of Contacts | 4 |
| Connector Type | Receptacle, Socket |
| Insulation | Insulated |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 1.4986 mm |
| Housing Material | Polyamide |
| Contact Resistance | 10 mΩ |
| Contact Gender | Female |
| Mating Post Length | 2.54 mm |
Stock: 1363
Distributors
pcbx
pcbxUnit Price$0.39417
Ext.Price$0.39417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39417 | $0.39417 |
| 10 | $0.38790 | $3.87900 |
| 25 | $0.38065 | $9.51625 |
| 50 | $0.37354 | $18.67700 |
| 100 | $0.35914 | $35.91400 |
| 300 | $0.32242 | $96.72600 |
| 500 | $0.28945 | $144.72500 |
